Task-Priority Control

This is my project within the Hands-On Intervention course at Universitat de Girona, done together with Elchin Aslanli. We built a ROS 2 framework for whole-body control of a mobile manipulator: a Kobuki (TurtleBot 2) base carrying a uFactory SwiftPro arm with a vacuum gripper. Some key points:

A recursive task-priority controller drives the base and the arm as one 6-DOF system.
Weighted damped least squares with adaptive weighting: the base handles large displacements, and the arm takes over when the target is within reach.
A behavior tree (py_trees) sequences the mission, with an ArUco detector giving the object pose.
Validated in the Stonefish simulator and then deployed on the real robot.

Real-robot pick and place — Real-robot demo: ArUco detection, pick, transport and place (about 1.7× speed)

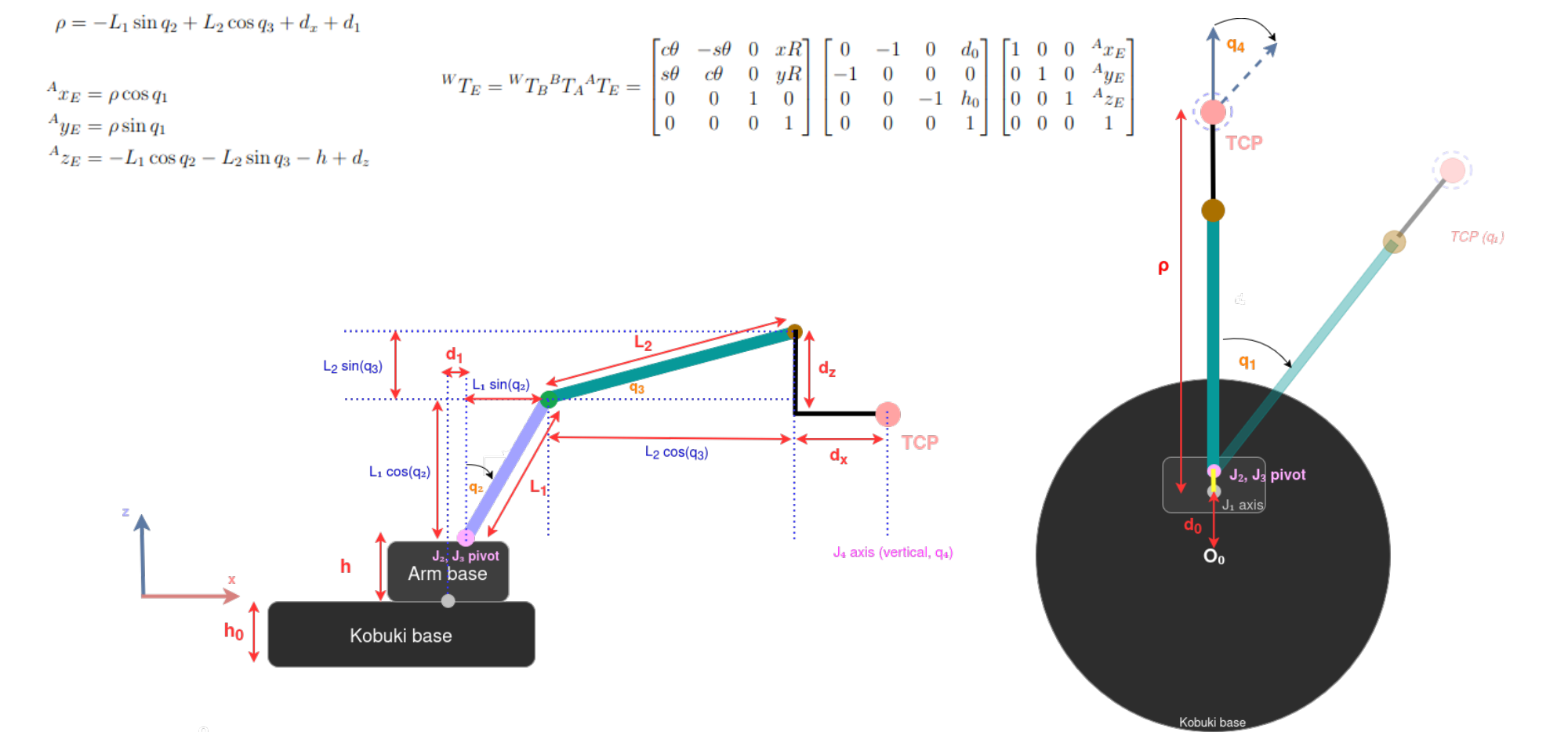

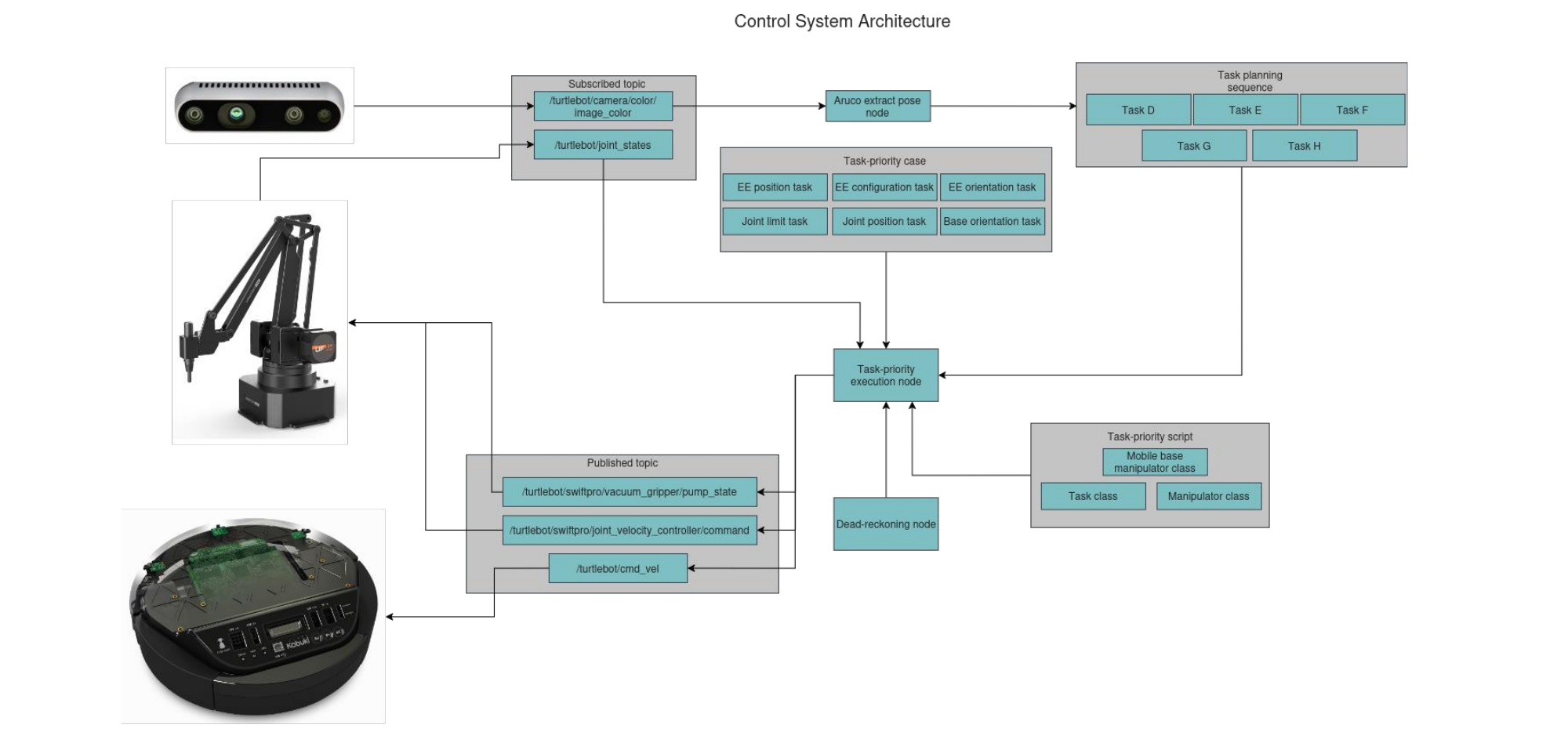

System Architecture and Kinematics

Each task $i$ is solved in the null space of all higher-priority tasks:

$$ \bar{J}_i = J_i P_{i-1},\qquad \dot{\zeta}_i = \dot{\zeta}_{i-1} + \bar{J}_i^{+}\left(a_i\, \dot{x}_i - J_i\dot{\zeta}_{i-1}\right),\qquad P_i = P_{i-1} - \bar{J}_i^{\dagger}\bar{J}_i $$

Each pseudo-inverse is a weighted damped least-squares solution $\bar{J}^{+} = W^{-1}\bar{J}^{T}(\bar{J}W^{-1}\bar{J}^{T} + \lambda^{2}I)^{-1}$, and the weighting matrix $W$ switches at run time depending on how far the target is from the base. Joint limits are handled as inequality tasks at the top of the hierarchy, and if any DOF exceeds its velocity limit, the whole command is scaled down so the direction of motion is kept.

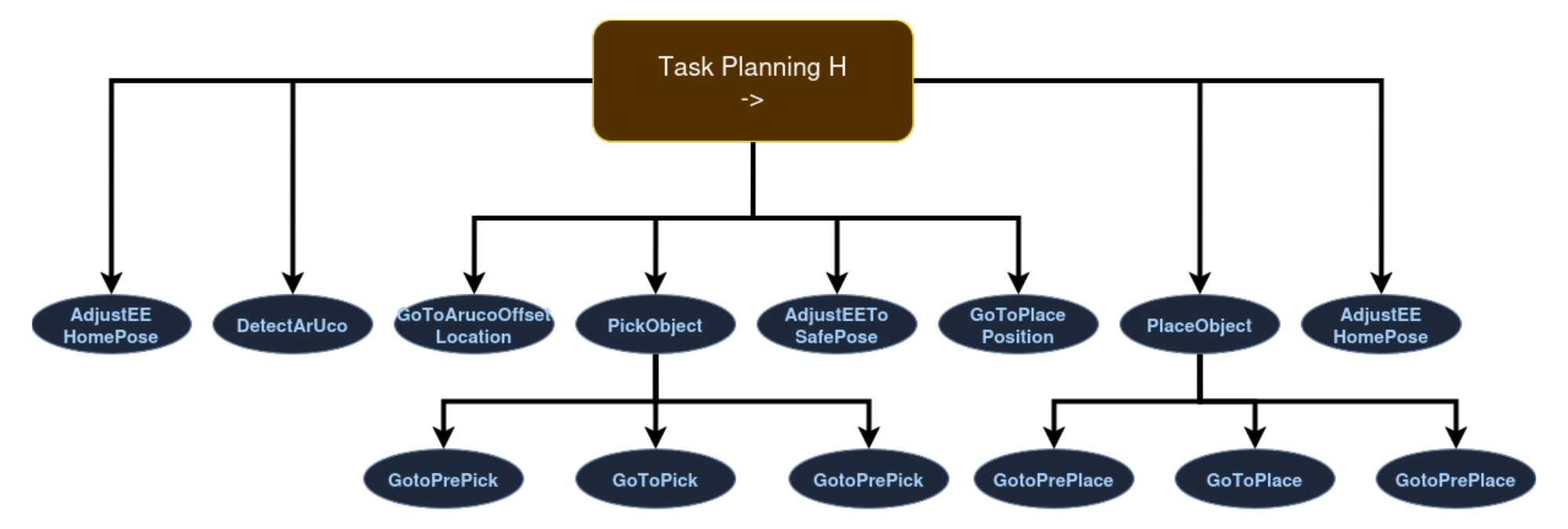

Mission Planning with Behavior Trees

The mission is a memory-based sequence: home pose → detect ArUco → go to the object → pick → safe pose → go to the place position → place → home pose. Each phase is a Selector(condition, action), so a phase whose condition is already satisfied is skipped. This makes the tree reactive and safe to re-tick.

Results

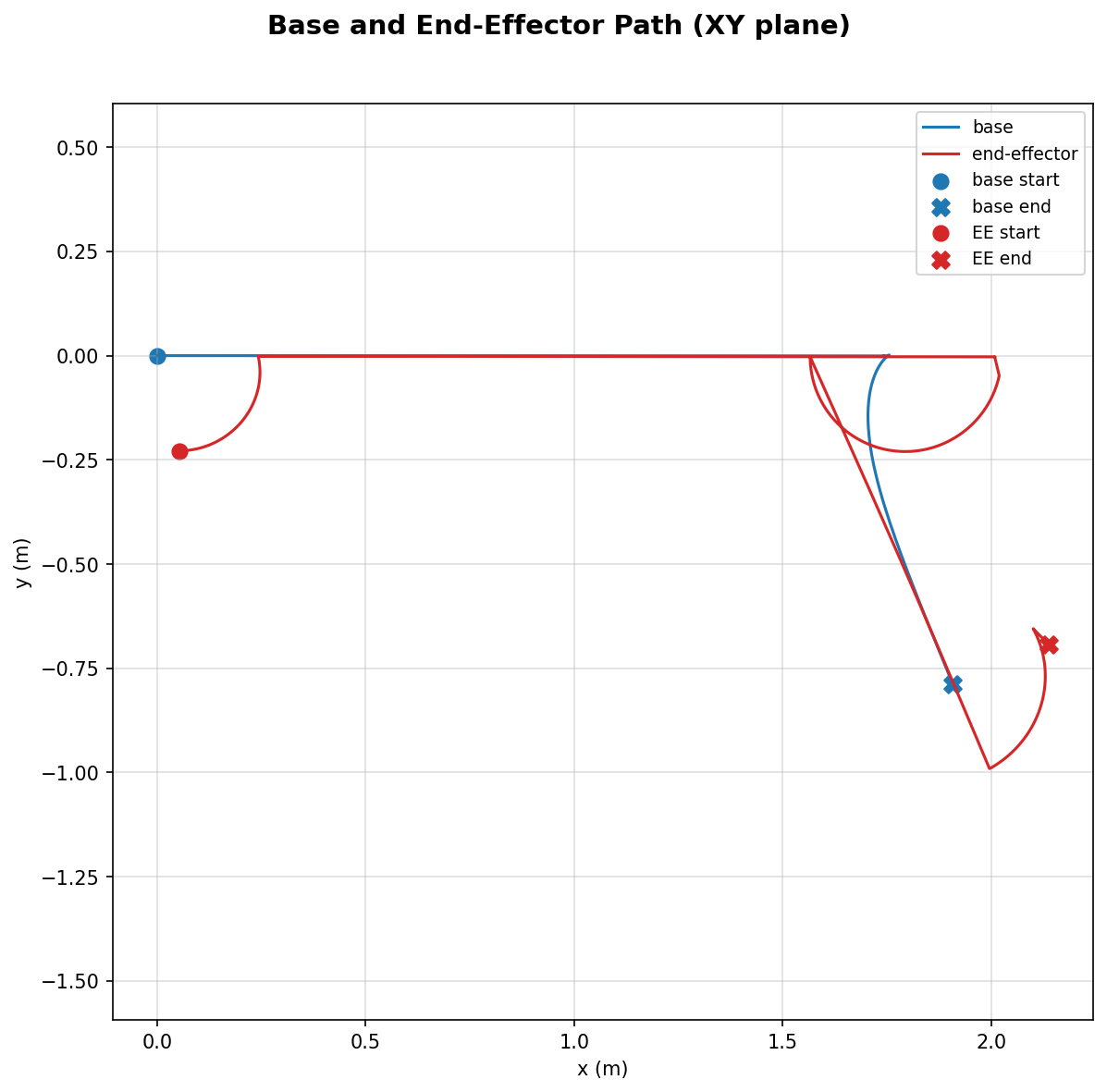

Simulation path — Simulation: base and end-effector path

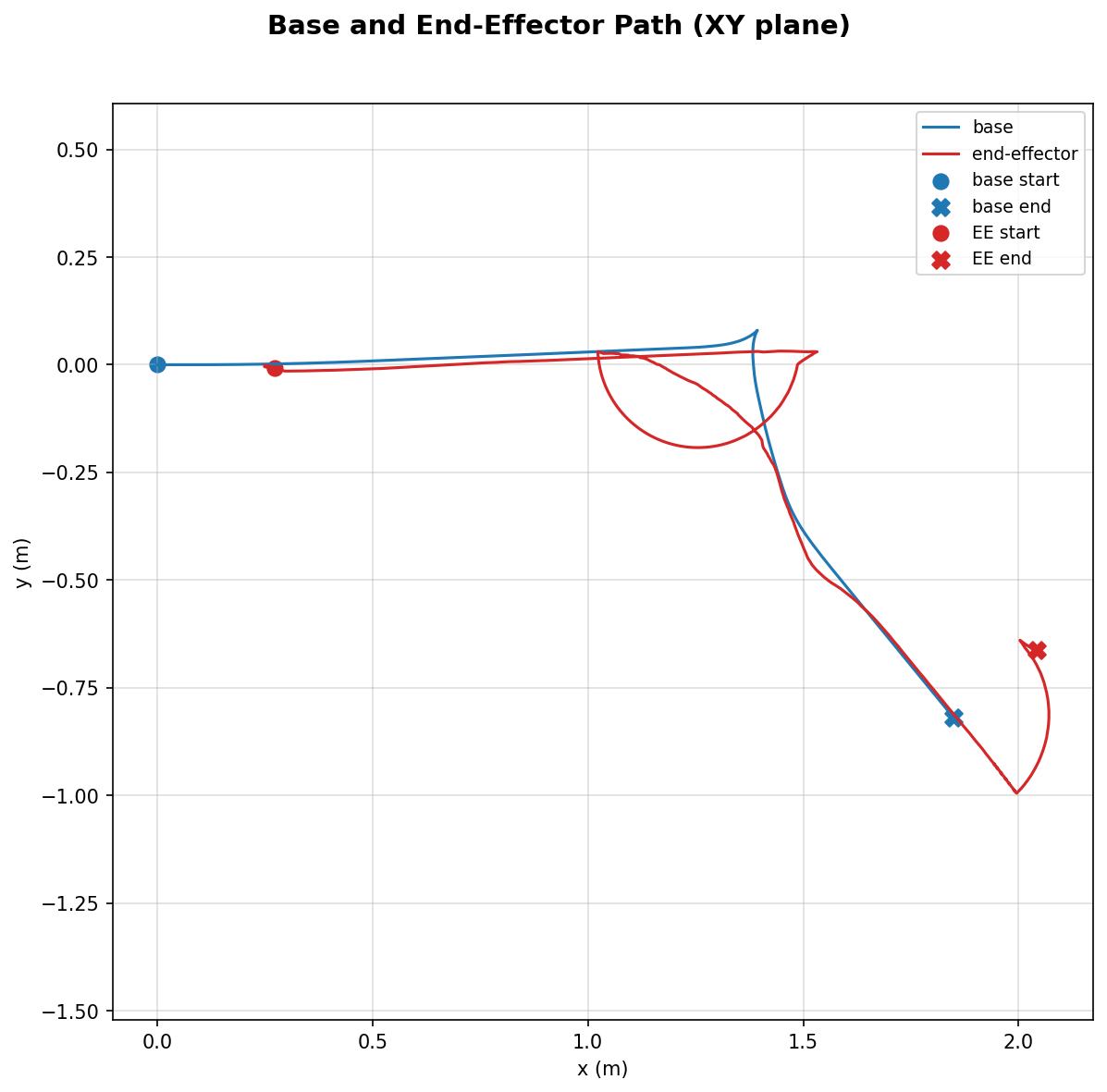

Real robot path — Real robot: the path closely matches the simulated one

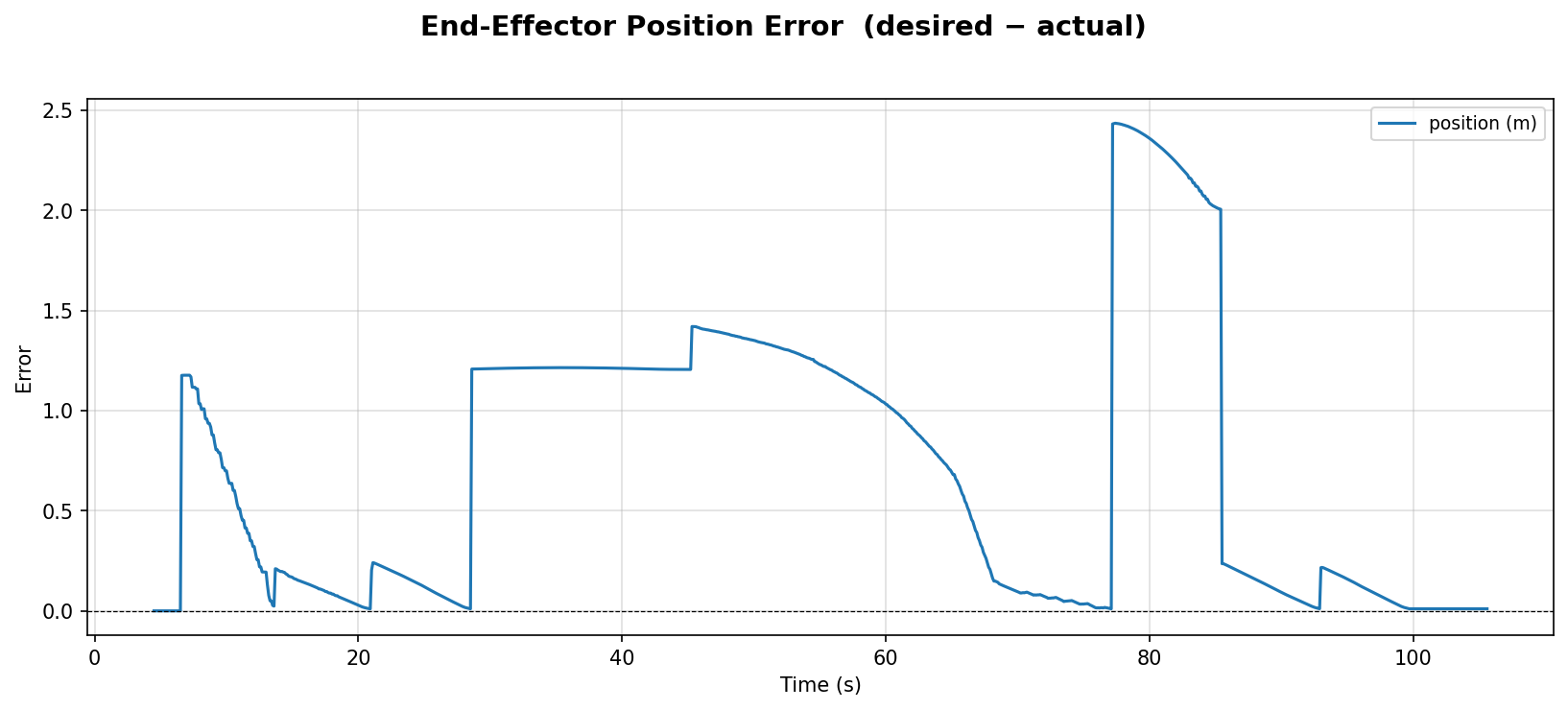

Simulation EE error — Simulation: end-effector error converges after each new goal

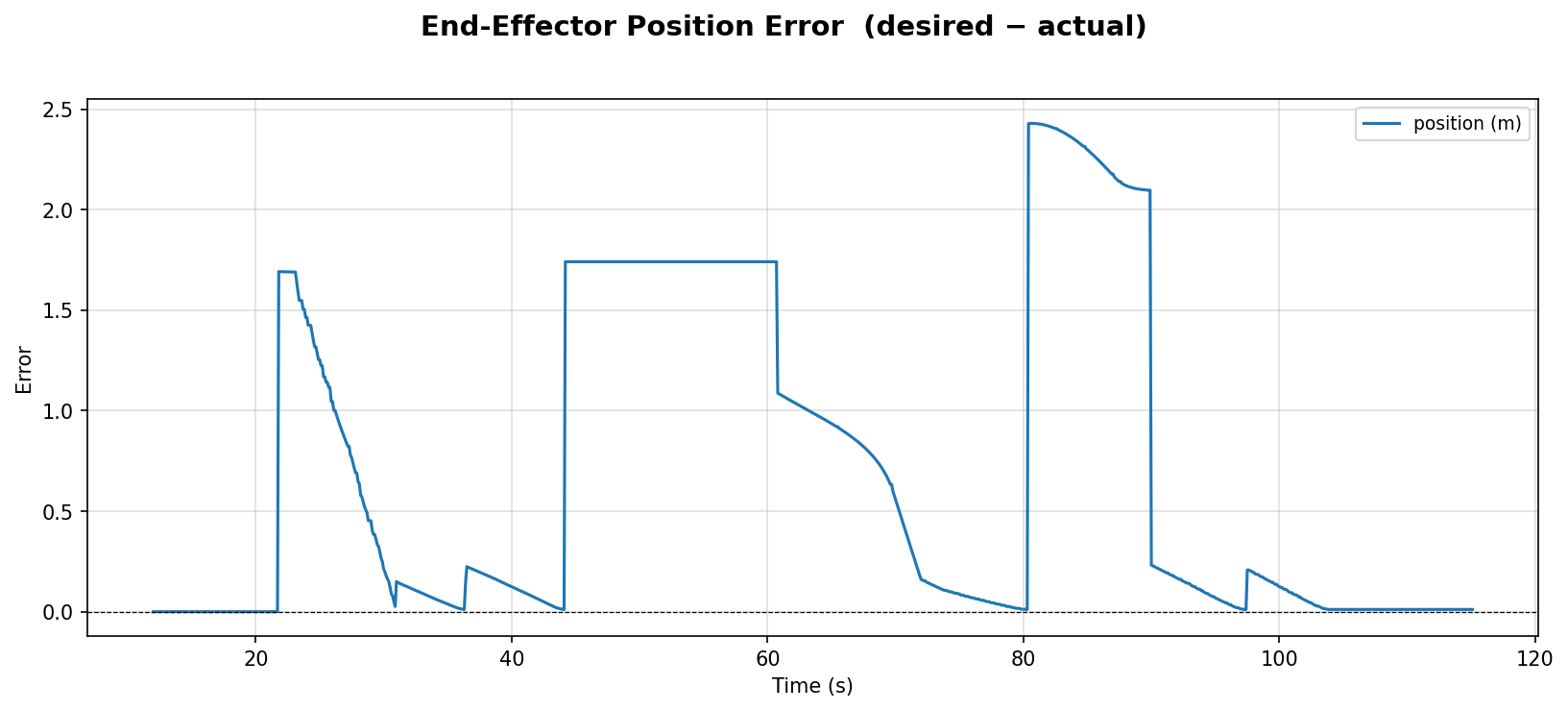

Real robot EE error — Real robot: every sub-goal is reached within tolerance

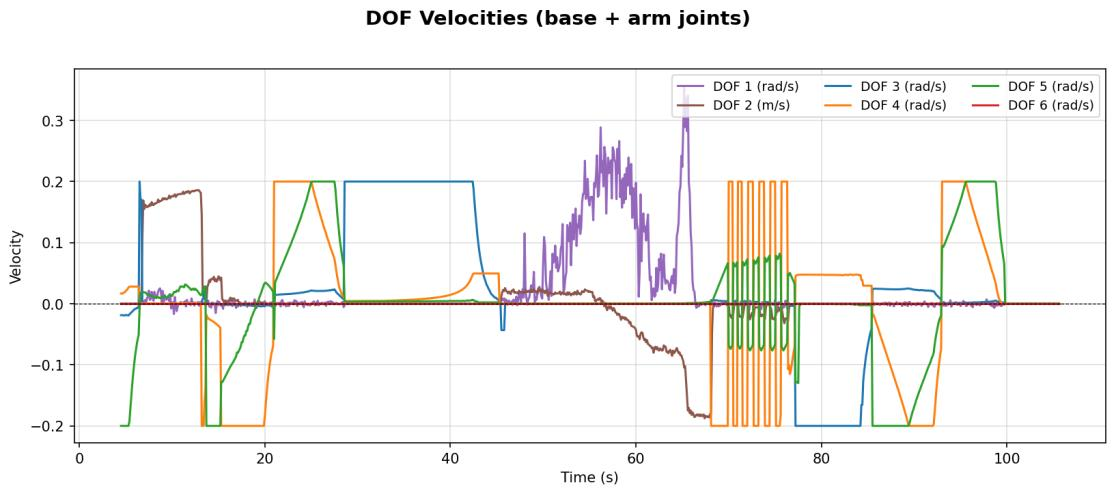

All DOF velocities stay within ±0.2 thanks to velocity scaling

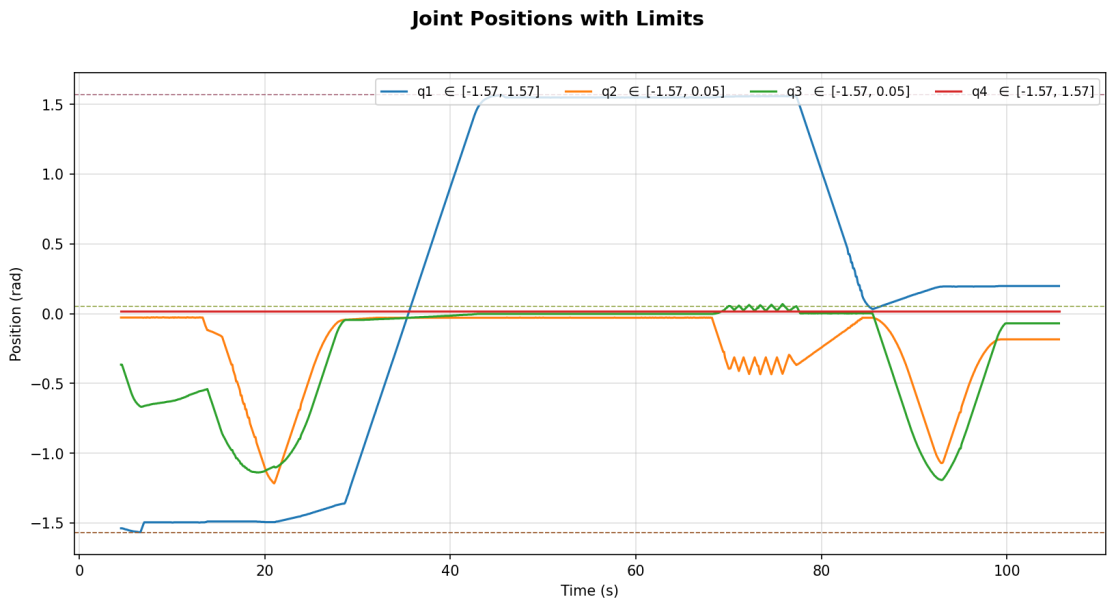

Joint positions — Joint limits are respected throughout the mission

The full pick-and-place mission was completed both in simulation (about 115 s) and on the real robot (about 105 s). Next steps are recovery behaviors when the marker is lost or the grasp fails, hysteresis on the joint-limit activation to remove chattering, and a proper localization source to reduce odometry drift.
